🔲 Die Size & Shear Strength Calculator
Calculate die area, epoxy volume, and MIL-STD-883 Method 2019.9 shear requirements
Die Dimensions
Die Area
µm²
-
mm²
-
in²
-
×10⁻⁴ in²
-
Minimum Epoxy Volume (Die Area × BLT)
µm³
-
mm³ (µL)
-
nL
-
in³
-
Minimum epoxy volume = Die Area × BLT. Actual dispense typically 1.5-2× for coverage.
MIL-STD-883 Method 2019.9 - Die Shear Strength
Die Area: - |
Category: -
| Test Level | Min Force (kgf) | Min Force (N) | Min Force (gf) |
|---|---|---|---|
| 1X | - | - | - |
| 1.25X | - | - | - |
| 2X | - | - | - |
MIL-STD-883 Method 2019.9 Requirements:
Enter die dimensions to calculate requirements.
Enter die dimensions to calculate requirements.

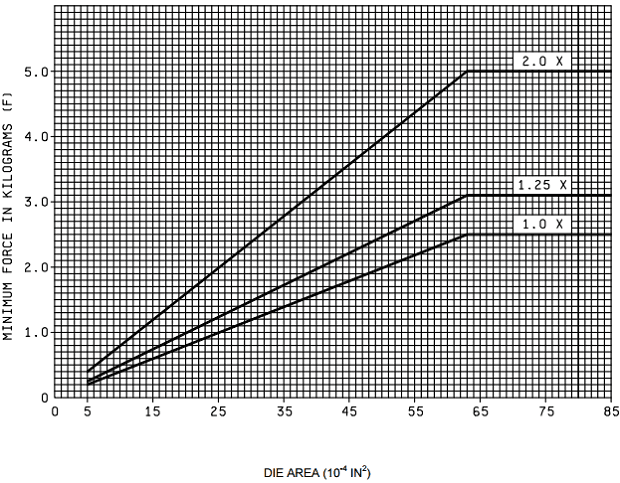

MIL-STD-883 Die Shear Force Chart (Figure 2019.4)
