WIRE BOND PULL TEST RECORD
MIL-STD-883 Method 2011.9 - Destructive Bond Pull Test
| Wire # | Result (gf) | Mode |
|---|---|---|
| 1 | ||
| 2 | ||
| 3 | ||
| 4 | ||
| 5 | ||
| 6 | ||
| 7 | ||
| 8 | ||
| 9 | ||
| 10 | ||
| 11 | ||
| 12 | ||
| 13 | ||
| 14 | ||
| 15 |
| Wire # | Result (gf) | Mode |
|---|---|---|
| 16 | ||
| 17 | ||
| 18 | ||
| 19 | ||
| 20 | ||
| 21 | ||
| 22 | ||
| 23 | ||
| 24 | ||
| 25 | ||
| 26 | ||
| 27 | ||
| 28 | ||
| 29 | ||
| 30 |
Failure Mode Codes:
- 1 - Ball lift (pad)
- 2 - Ball neck break
- 3 - Midspan wire break
- 4 - Wedge heel break
- 5 - Wedge lift (bond pad)
- 6 - Wedge lift (post)
Technician Signature / Date
QA Approval / Date
REFERENCE: Gold Wire Minimum Pull Strength (MIL-STD-883 Method 2011.9)
| Wire (mil) | 0.6 | 0.7 | 0.8 | 1.0 | 1.2 | 1.3 | 1.4 | 1.5 | 1.6 | 1.8 | 2.0 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1X (gf) | 1.5 | 2.0 | 2.4 | 3.0 | 4.0 | 4.5 | 5.0 | 5.5 | 6.0 | 7.0 | 8.0 |
| 1.25X (gf) | 1.9 | 2.5 | 3.0 | 3.8 | 5.0 | 5.6 | 6.3 | 6.9 | 7.5 | 8.8 | 10.0 |
| 2X (gf) | 3.0 | 4.0 | 4.8 | 6.0 | 8.0 | 9.0 | 10.0 | 11.0 | 12.0 | 14.0 | 16.0 |

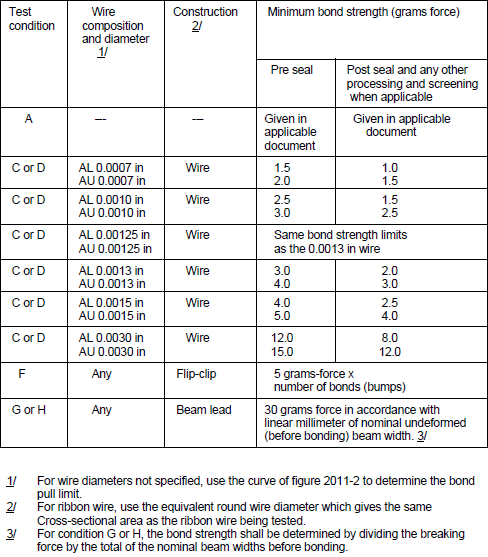

MIL-STD-883J Method 2011.9 Reference Charts
